Everest 870HP

Product Description

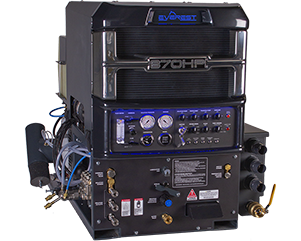

Our most powerful cleaning and extraction truckmount pairs a liquid-cooled fuel-injected Kubota 4-cylinder engine with a Eurus vacuum blower to deliver industry-leading heat, extraction performance and durability. Plus, nanotech Cerakote treatment dramatically lowers heat radiating from all exhaust components, helping to extend truckmount life and keep van interiors cooler.

Find the Right Truckmount

Sizes ▪ Options

106563 (72-870HP): Everest 870HP with 120 gal. / 454 L waste tank

Specifications

Power plant: Kubota liquid-cooled 57 HP fuel injected gasoline engine

Vacuum pump: Industrial-grade Eurus positive displacement blower with vacuum to 13 in. Hg at 3580 RPM

Solution pump: General Pump delivering up to 5.6 GPM and up to 2500 psi at 1500 RPM (high speed setting)

Chemical injection system: Last step injection

see all specifications

Features

5-year warranty – a first for a slide-in!
Maximum extraction – use with multiple tools with ease.
Abundant hot water – patented fin tube heat exchanger and plate coolant heat exchanger
Four-setting thermalogic heat control
High pressure (up to 2500 psi) with heat
Chemical simulator - adjust chemical flow without having to trigger wand
Nanotech Cerakote® coating lowers exhaust components’ heat levels by 30% or more.
Economical - E-Idle system can reduce fuel consumption by up to 23%.

Includes

Console with removable shrouds
Waste tank with automatic shut-off
150 ft. - 2" vacuum hose with connectors
150 ft. - 1/4" I.D. high pressure solution hose w/ quick connect
50 ft. - water supply hose w/ quick connect
14" Low Profile 6-jet titanium wand (67-081) with glide (67-084)
5 gallon chemical jug and holder
Group 24 battery box (battery not included)
Operation manual and installation kit
Vehicle-specific fuel installation kits sold separately
All units include Legend Reward points. End customer must establish a rewards account and register their machine for warranty online to receive points.

Specs

Power plant: Kubota liquid-cooled 57 HP fuel injected gasoline engine

Vacuum pump: Industrial-grade Eurus positive displacement blower with vacuum to 13 in. Hg at 3580 RPM

Solution pump: General Pump delivering up to 5.6 GPM and up to 2500 psi at 1500 RPM (high speed setting)

Chemical injection system: Last step injection

Heating system:

1. Finned stainless steel tube coil with automatic diverter and four heat settings.
2. Engine coolant plate provides rapid cleaning solution preheating and reduced engine coolant temperatures.

Prefilter box: Stainless steel basket for easy cleanup between jobs.

Frame construction: Powder-coated aluminum 2 in. box tubing

Weight: Console: 1270 lbs.
Package: 1700 lbs.
Operating: 2635 lbs.

Dimensions: Console (W × H × D): 43 × 42 × 53 in.

Package (W × H × D): 62.5 × 42 × 66.5 in.

Legend Rewards: 25,000 points

Videos

Documents

Everest 870HP Flyer
Everest 870HP (49-174B SN 100-444) (Manual)
Everest 870HP (49-174C SN 445+ ) (Manual)
Professional Cleaning Guide
Everest 870HP (Product Image 1)
Everest 870HP (Product Image 2)
Everest 870HP (Product Image 3)
Everest 870HP (Product Spec Sheet)
Everest 870HP (Troubleshooting Guide)

Troubleshooting

Everest 870HP Troubleshooting Guide
