Legend GT

Product Description

Building on the Legend’s proven track record, this unit delivers even better performance and longer life with single-stage finned tube exhaust heat exchange, a corrosion-resistant aluminum frame, and an engine oil cooler. All exhaust components are treated with Cerakote ceramic coating to reduce truckmount operating temps.

Find the Right Truckmount

Sizes ▪ Options

117579 (72-LGT): Legend GT with 90 gal. / 341 L waste tank

108091 (72-LGTHC): Legend GT with 120 gal. / 454 L waste tank

101049 (68-416): 60 gal. / 227L water belly tank (sold separately)

Specifications

Engine: Kohler Command 0.67 L gasoline engine with oil cooler

Displacement Blower: Gardner Denver 4MVL positive displacement blower

Solution pump: General water pump producing up to 1200 PSI and 3.5 GPM

Dimensions: Console (W × H × D): 32 × 33 × 39.5 in. | 81 × 83.8 × 100 cm

Legend Rewards:

10,000 points

Features

Front panel waste pumpout switch. Convenient - operate optional waste pumpout from front of machine.
Simplified control panel. Easy to operate. Front lower panel can be removed quickly for maintenance.
Stainless steel chemical pump. Durable chemical pump resists corrosion to provide long service life.
Pulse isolating hose reduces vibration caused by piston water pump.
Last step chemical injection. Cleaning chemicals are added just as the water leaves the machine, helping to protect the water pump.

Includes

Console with removable shrouds
Waste tank with automatic shut-off
100 ft. - 2" vacuum hose with connectors
50 ft. - water supply hose w/ quick connect
12” Low Profile 4-jet titanium wand (67-082) and Glide (67-085)
5 gallon chemical jug and holder
Group 24 battery box (battery not included)
Vehicle-specific fuel installation kits sold separately
All units include Legend Reward points. End customer must establish a rewards account and register their machine for warranty online to receive points.

Specs

Engine: Kohler Command 0.67 L gasoline engine with oil cooler

Displacement Blower: Gardner Denver 4MVL positive displacement blower

Solution pump: General water pump producing up to 1200 PSI and 3.5 GPM

Dimensions: Console (W × H × D): 32 × 33 × 39.5 in. | 81 × 83.8 × 100 cm

Legend Rewards:

10,000 points

Videos

Documents

Legend GT Truckmount Manual 49-167A (SN10011190001701+) (Manual)
Legend GT Flyer
Professional Cleaning Guide

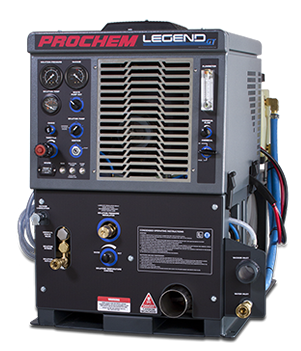

Legend GT (Product Image 1)

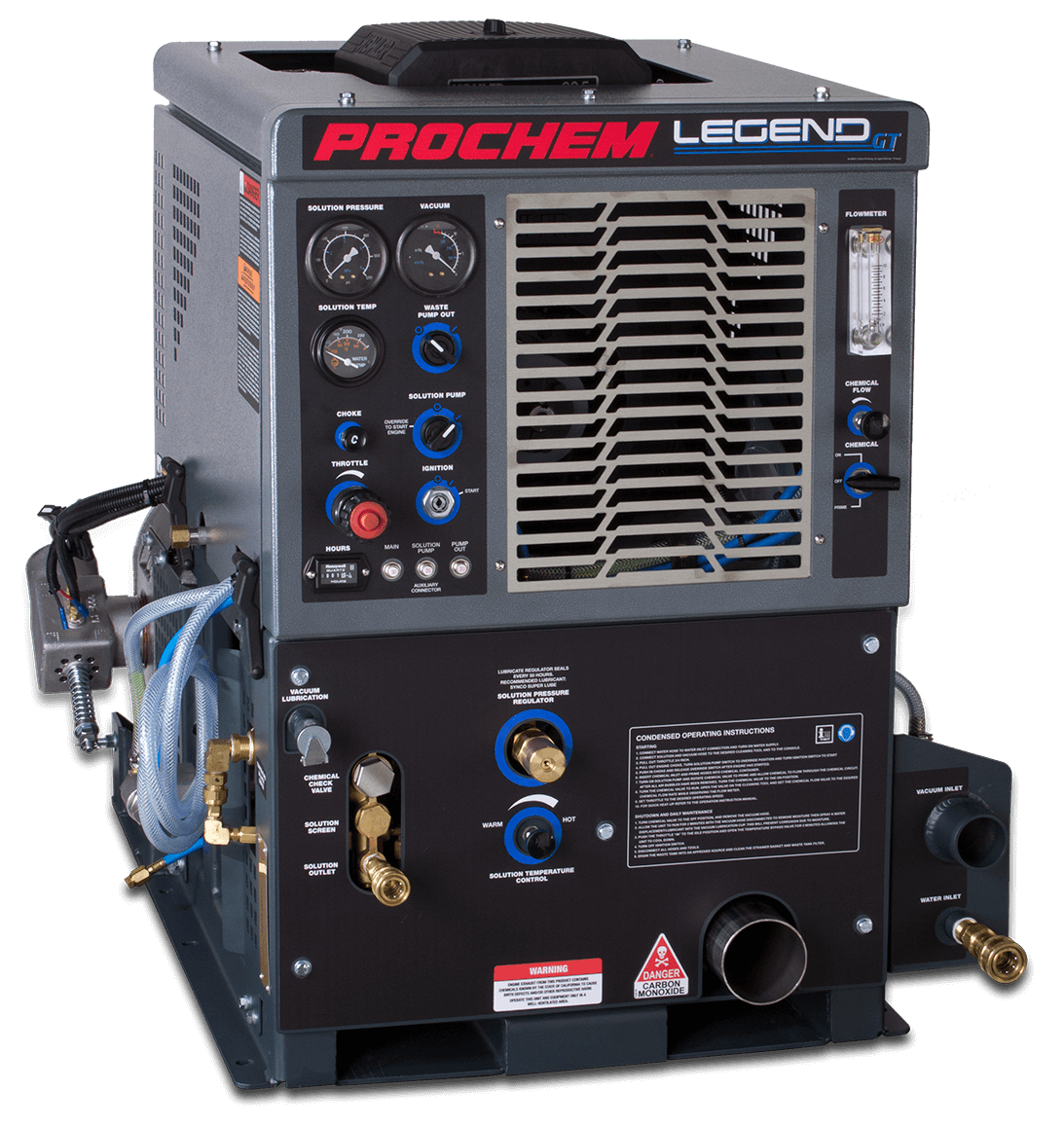

Legend GT (Product Image 2)

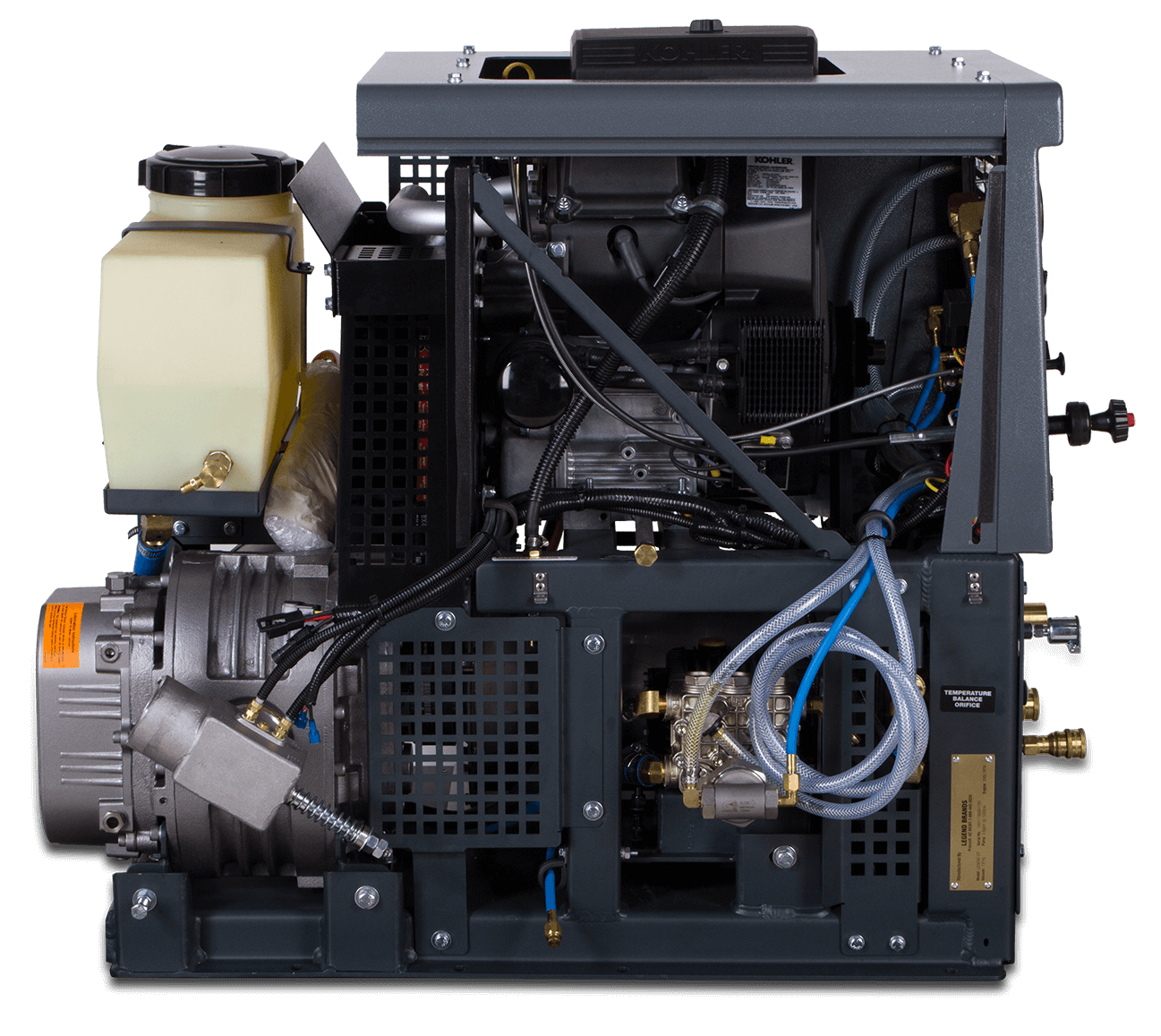

Legend GT (Product Image 3)
Legend GT (Product Spec Sheet)
Legend GT (Troubleshooting Guide)

Troubleshooting

Legend GT Troubleshooting Guide

WARNING!
DO NOT attempt to service this unit while it is running. High-speed parts as well as high temperature components may result in severe injury, severed limbs, or fatality.

This Troubleshooting Guide describes how to check for potential malfunctions. Accurate troubleshooting requires a thorough understanding of all truckmount systems in this unit. Please refer to the owner’s manual or contact your local distributor for complete troubleshooting and repair assistance. Do not alter or modify your truckmount in any way. Use only replacement parts authorized by Legend Brands. Modifications or use of unapproved parts could create a hazard and will void your warranty. Contact your authorized Legend Brands distributor for assistance.

Reviews

Customers get bonus Legend Rewards for sharing their product feedback

Email your reviews to market@legendbrands.com

It heats up faster than our older truckmounts. Overall, it’s a beast of a machine. –Michael Brawley, American Maintenance Service, Myrtle Beach, SC
