Apex 570

Product Description

Powered by a liquid-cooled cast iron Kubota engine, this truckmount uses the patented Sapphire Scientific triple-source thermal well system to deliver consistent high heat. Cerakote ceramic coating lowers the heat radiation on all exhaust components by more than 30%—extends truckmount life and helps to keep van interiors cooler. (Not available in California.)

Find the Right Truckmount

Sizes ▪ Options

117582 (72-570): Apex 570 with 90 gal. / 341 L waste tank

106570 (72-570HC): Apex 570 with 120 gal. / 454 L waste tank

Specifications

Power plant: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM

Vacuum pump: Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.

Solution pump: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM

Waste tank: 90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank

Legend Rewards:

15,000 points

see all specifications

Features

Quieter Helical Tri-Lobe HF 408 Blower produces less vibration and ensures better dry times
Through-frame drive belt cooling significantly reduces downtime by extending belt life
Cerakote ceramic coating on exhaust system minimizes heat and extends components' service life
Patented thermal well design incorporates tube-and-shell heat exchanger to maximize heat transfer from engine to solution.
Easy-to-remove access panel and side hoods allows for quick service
Narrowest liquid-cooled slide-in on the market.

Includes

Console with removable shrouds
Waste tank with automatic shut-off
150 ft. - 2" vacuum hose with connectors
150 ft. - 1/4" I.D. high pressure solution hose w/ quick connect
50 ft. - water supply hose w/ quick connect
14" Low Profile 6-jet titanium wand (67-081) with glide (67-084)
5 gallon chemical jug and holder
Group 24 battery box (battery not included)
Operation and service manual
Vehicle-specific fuel installation kits sold separately
All units include Legend Reward points. End customer must establish a rewards account and register their machine for warranty online to receive points.

Specs

Power plant: Kubota WG972 31 HP liquid cooled cast iron gasoline engine operating at 3000 RPM

Vacuum pump: Gardner Denver trilobe HeliFlow® HF408 helical positive displacement blower. Vacuum at 13 in. and flows up to 455 CFM.

Solution pump: General HTS2016S producing up to 1500 PSI and 5 GPM at 1500 RPM

Waste tank: 90 gal. marine grade aluminum. Optional: 120 gal. high capacity waste tank

Belt cooling: 100 CFM through-frame air injection system

Dimensions: Console (W × H × D): 22 × 43 × 50 in. | 56 × 109 × 127 cm

Frame construction: 0.125 in. × 2 in. powder-coated aluminum box tubing.

Legend Rewards:

15,000 points

Videos

Documents

Apex 570 Product Flyer
Apex 570 (SN2061+) (Manual)

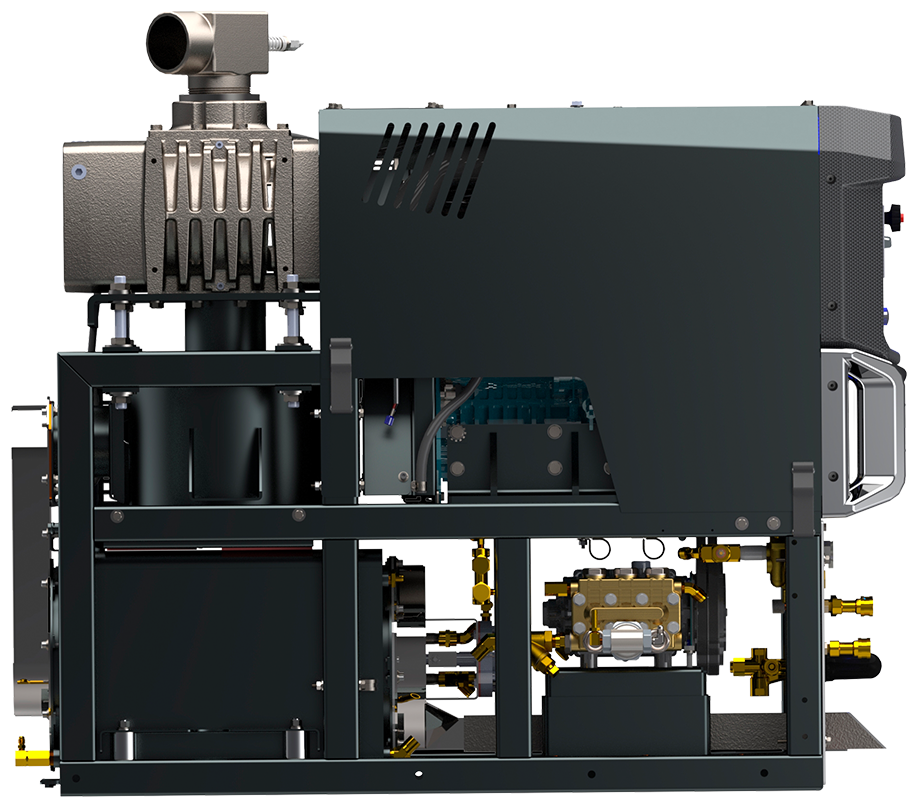

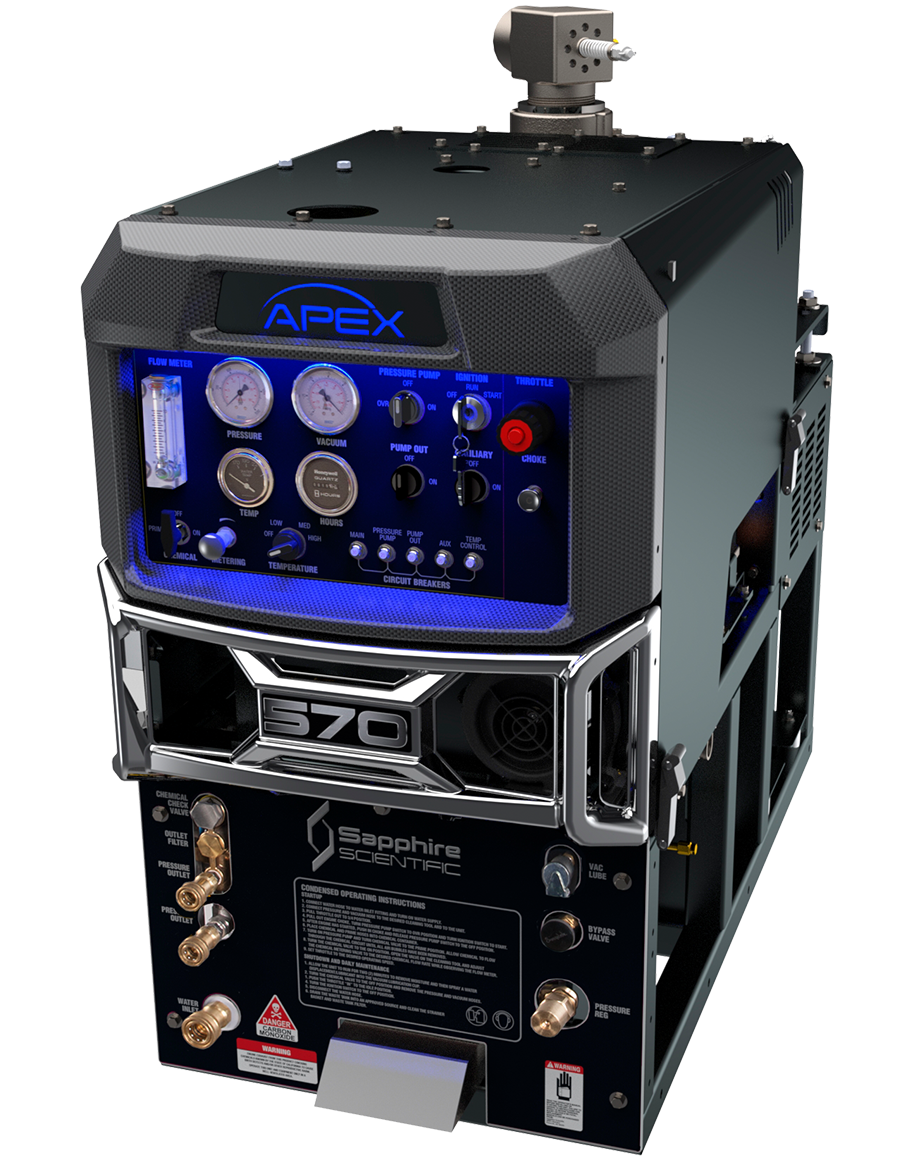

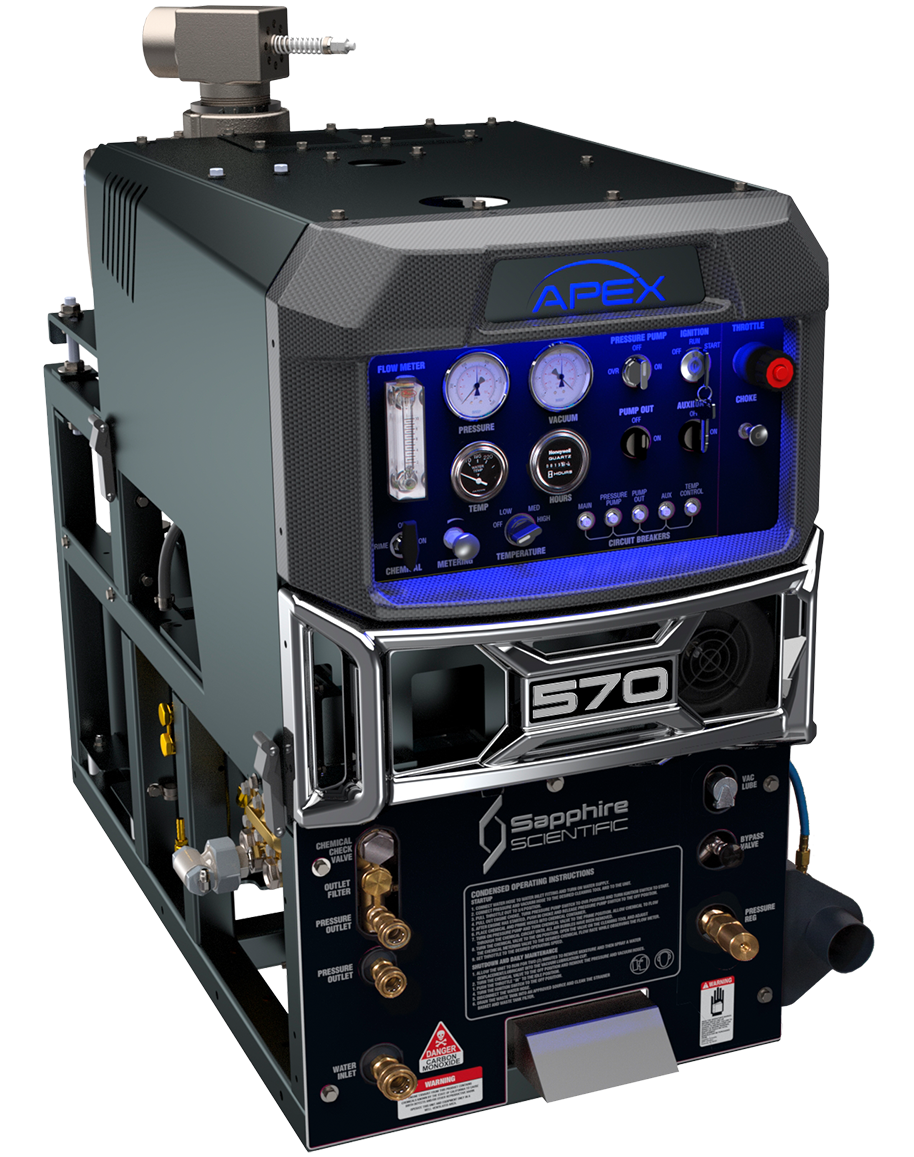

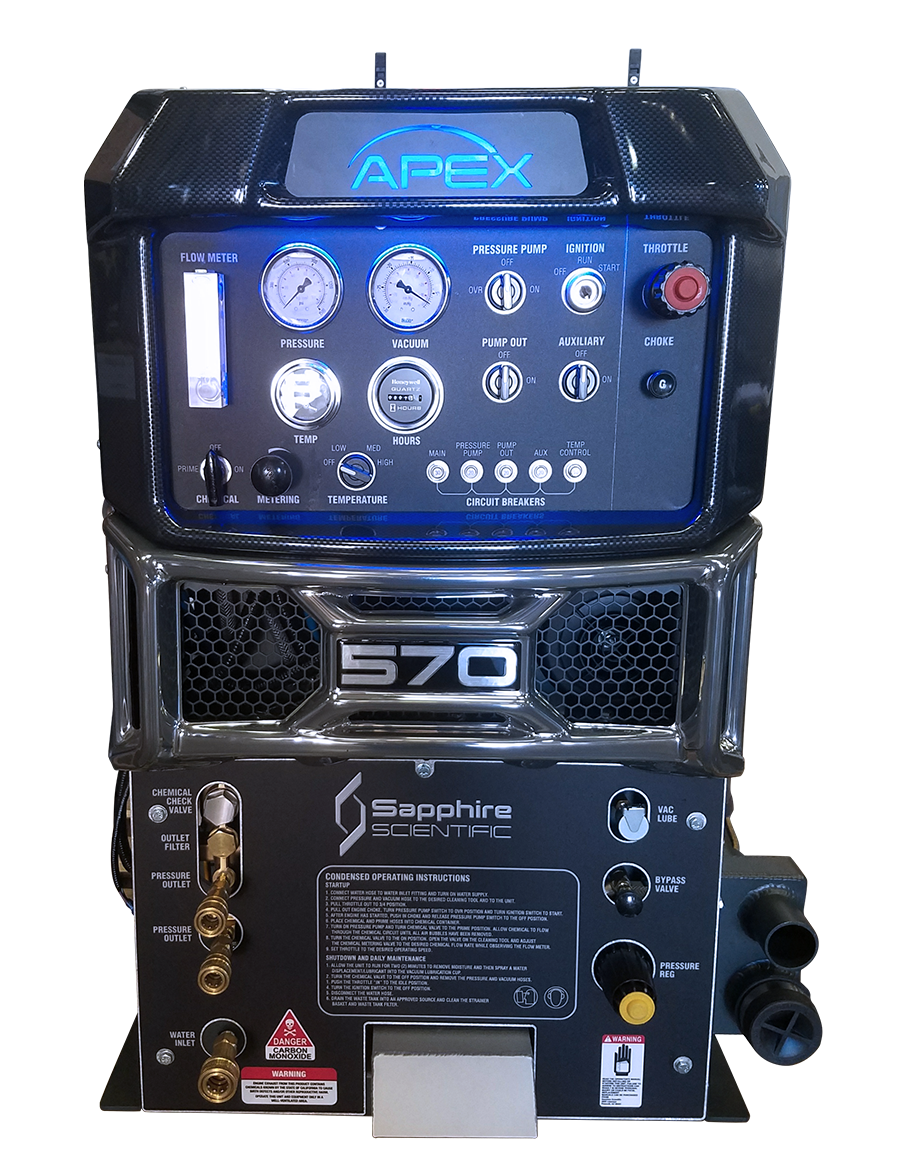

Apex 570 (Product Image 1)
Apex 570 (Product Image 2)
Apex 570 (Product Image 3)
Apex 570 (Product Image 4)
Apex 570 (Product Spec Sheet)
Apex 570 (Troubleshooting Guide)

Troubleshooting

Apex 570 Troubleshooting Guide

Reviews

Customers get bonus Legend Rewards for sharing their product feedback

Email your reviews to market@legendbrands.com

“We bought an Apex 570 two months ago and a second one today. I love these machines. From the heat and suction to the look and components—it’s what any new carpet and tile cleaner would need to dominate in their market.” —Evan Ritchey, Coconut Cleaning, Chandler, AZ

"Just bought this truckmount—love the high heat and amazing vacuum. The techs love the cooler temperature in the van between jobs. This machine is a winner!" —Ron Legacy, Legacy Services & Professional Carpet Cleaning Services, Seattle
