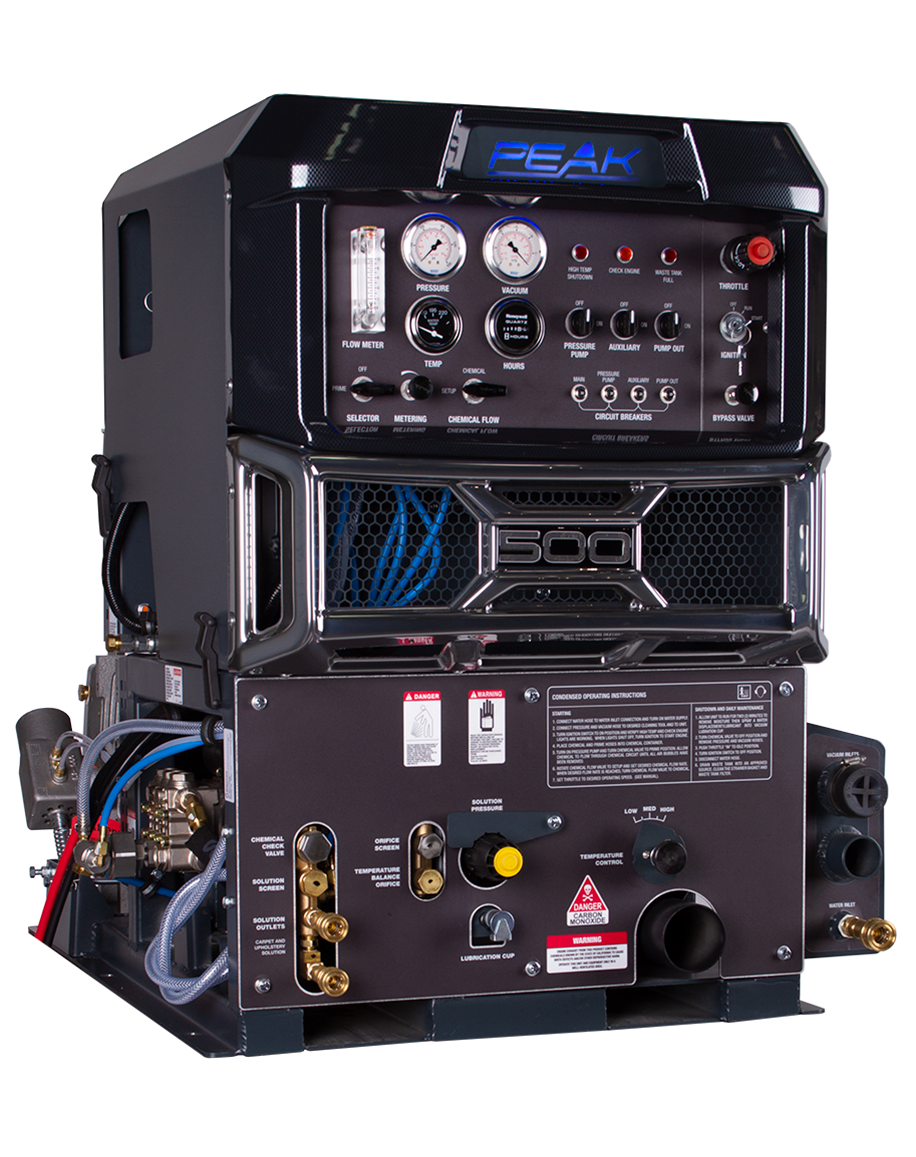

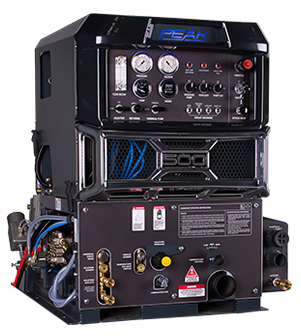

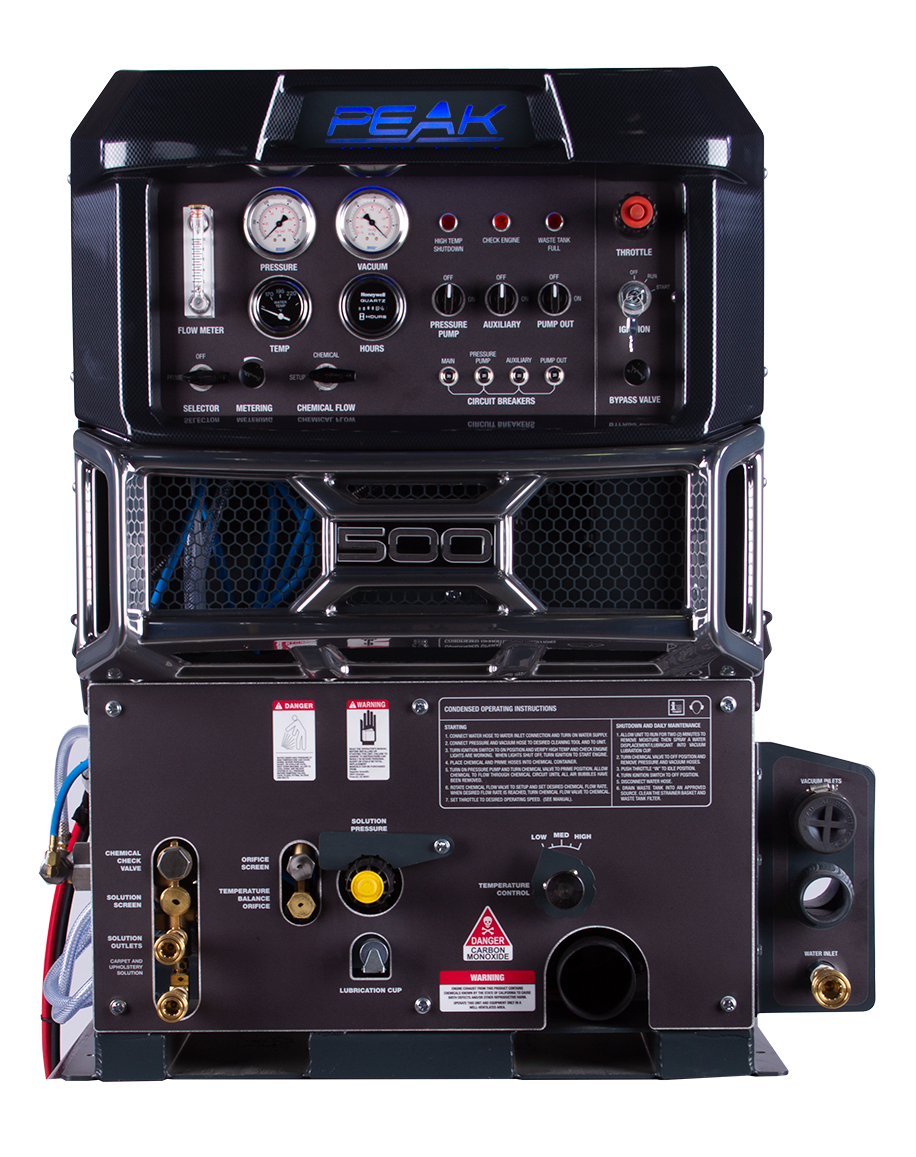

Peak 500

Economical liquid-cooled powerhouse

Product Description

Value-priced and 50-state CARB-compliant, this liquid-cooled unit delivers enough heat and vacuum to operate a six-jet wand flat out. Heats fast but sips fuel at only 1 gallon per hour. Lowest cost CARB-compliant machine in its class! Cerakote treatment on exhaust components reduces truckmount and van interior temps.

Find the Right Truckmount

Sizes ▪ Options

106564 (72-500): Peak 500 with 90 gal. / 341 L waste tank

108092 (72-500HC): Peak 500 with 120 gal. / 454 L waste tank.

Specifications

Power plant: Kawasaki FD851D-DFI liquid-cooled 31 HP engine with digital fuel injection and 47.1 ft-lbs of torque operating at 3000 RPM

Vacuum pump: Gardner Denver TriFlow 406 positive displacement blower with vacuum to 13 in. Hg and flows up to 406 CFM

Solution pump: General HTXS1813S water pump producing 3.5 GPM and up to 1500 PSI at 1450 RPM

Heating system: Stainless steel/copper finned tube coil design with manual adjustment control. Supplemented with a plate engine coolant heat exchanger.

Legend Rewards:

12,000

see all specifications

Features

Fast warm-up period and holds the heat using 6-flow wand
Cerakote® treated exhaust reduces radiant heat from exhaust components up to 30%
Economical operation: consumes only 1 gallon of gas per hour
Stainless steel/copper finned tube coil design with manual adjustment control. Also features a plate engine coolant heat exchanger to preheat incoming water and reduces engine coolant temperature.
Easy to use manual temperature control
Corrosion-resistant all-aluminum powder coated frame
Engineered for easy service

Includes

Console with removable shrouds
Waste tank with automatic shut-off
100 ft. - 2" vacuum hose with connectors
100 ft. - 1/4" I.D. high pressure solution hose w/ quick connect
50 ft. - water supply hose w/ quick connect
14" Low Profile 6-jet titanium wand (67-081) with glide (67-084)
5 gallon chemical jug and holder
Group 24 battery box (battery not included)
Vehicle-specific fuel installation kits sold separately
All units include Legend Reward points. End Customer must establish a rewards account and register their machine for warranty online to receive points.

Specs

Power plant: Kawasaki FD851D-DFI liquid-cooled 31 HP engine with digital fuel injection and 47.1 ft-lbs of torque operating at 3000 RPM

Vacuum pump: Gardner Denver TriFlow 406 positive displacement blower with vacuum to 13 in. Hg and flows up to 406 CFM

Solution pump: General HTXS1813S water pump producing 3.5 GPM and up to 1500 PSI at 1450 RPM

Heating system: Stainless steel/copper finned tube coil design with manual adjustment control. Supplemented with a plate engine coolant heat exchanger.

Frame construction: Powder-coated aluminum box tubing

Dimensions: Console (W × H × D): 35 × 40 × 47 in. | 89 × 101.6 × 119.4 cm

Legend Rewards:

12,000

Videos

Documents

Peak 500 (49-169A) (Manual)
Peak 500 Product Flyer
Professional Cleaning Guide
Peak 500 (Product Image 1)
Peak 500 (Product Image 2)
Peak 500 (Product Spec Sheet)
Peak 500 (Troubleshooting Guide)

Troubleshooting

Peak 500 Troubleshooting Guide

Reviews

Customers get bonus Legend Rewards for sharing their product feedback

Email your reviews to market@legendbrands.com

We just recently got one of these for are bigger trucks and let me tell you it works perfectly. We have plenty of space in our van and it doesn’t eat up that much gas so we can stay on the road for more jobs. We recently tried the cold water setting on it and the water consumption is nice. –Michael Brawley, American Maintenance Service, Myrtle Beach, SC
